Designing an efficient warehouse layout is crucial for optimizing space, streamlining operations, and enhancing productivity. Whether you're planning a custom-shaped facility, a multi-story warehouse, or an order fulfillment center, a well-structured floor plan ensures smooth workflows and maximizes functionality. The examples above demonstrate diverse warehouse designs, from urban-adapted parallelograms to distribution-focused layouts with dedicated office zones.

To bring your ideal warehouse plan to life, EdrawMax offers intuitive tools for both beginners and professionals. You can start from scratch or customize ready-made templates, adjusting walls, doors, and functional areas with ease.

In this article
  1. Warehouse Layout Examples
  2. How to Create a Warehouse Layout in EdrawMax

Warehouse Layout Examples

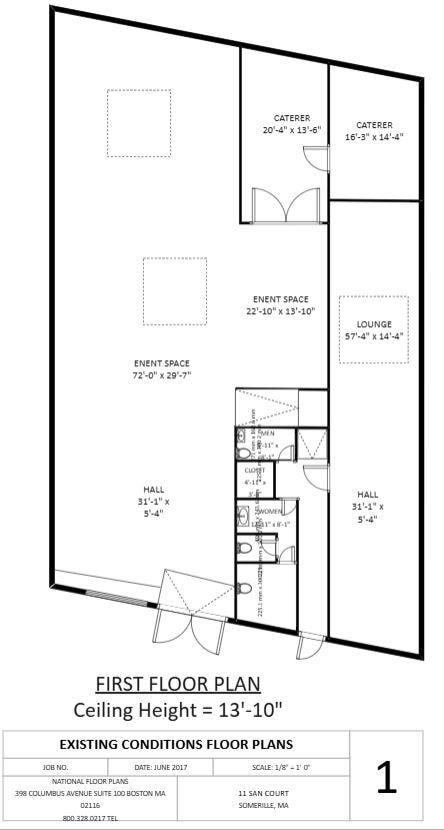

Custom Warehouse Floor Plan

The floor plan showcases a custom-designed warehouse layout in the shape of a parallelogram, making it well-suited for urban plots with unconventional boundaries. The design includes staff-oriented amenities, featuring a catering and dining hall adjacent to a designated lounge area for relaxation.

Separate restroom facilities for male and female staff are also provided to ensure comfort and convenience. A spacious warehouse area forms the core of the facility, supporting its primary operational functions. This first-floor layout is designed with a generous ceiling height of 13 feet 10 inches, accommodating a range of functional and spatial requirements within the facility.

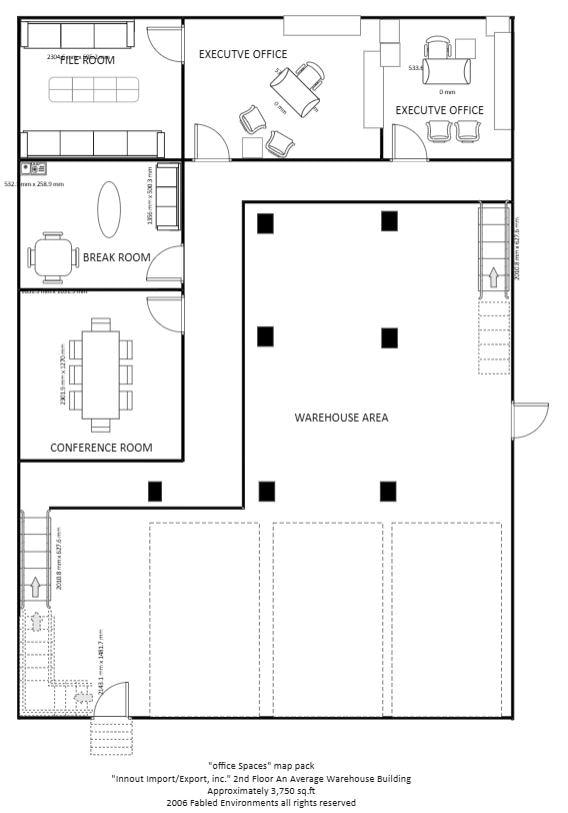

Typical 2nd-Floor Plan of a Warehouse

This is the second floor of the typical warehouse, which is organized into two primary zones: the main warehouse area and a dedicated office section. The warehouse occupies the majority of the floor space, supporting the core operational functions of the facility.

To accommodate administrative and managerial tasks, a separate office area has been strategically placed. This office section includes an L-shaped corridor that provides access to various rooms such as executive offices, a conference room, a file storage room, and a break room, ensuring efficient workflow and staff comfort.

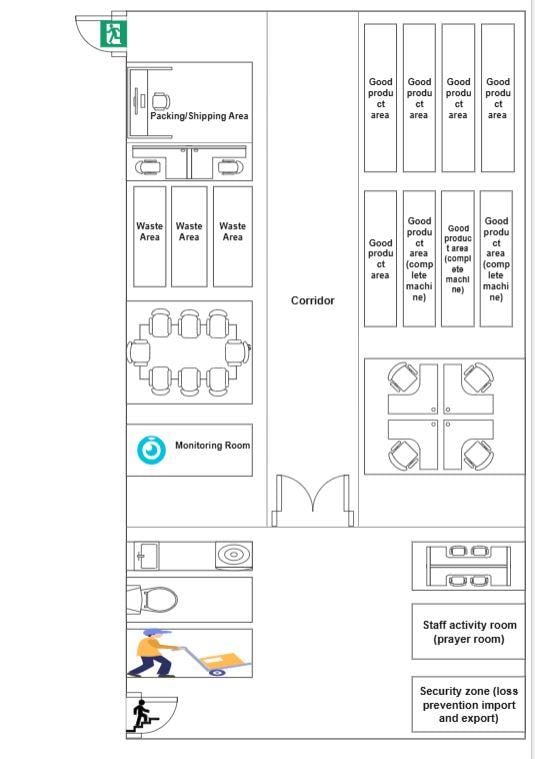

Distribution Warehouse

The distribution warehouse features an accessible and efficient floor plan, with a central corridor dividing the space and providing direct access to rooms and facilities on both sides. On the right side of the corridor, the layout includes an office area and a spacious storage zone designated for finished goods.

Adjacent to this is a conference room and a dedicated waste area for managing damaged products and general waste. The storage area also connects to a secondary exit, leading to a strategically placed parking and shipping zone for streamlined logistics operations. Additional facilities within the warehouse include a prayer room, restrooms, a monitoring room, and a security area.

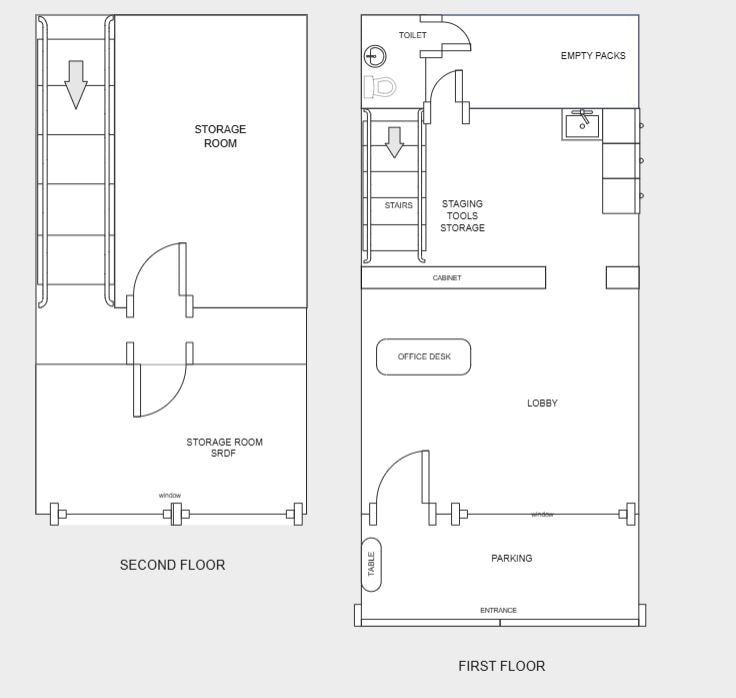

2-Storey Warehouse

This floor plan illustrates the layout of a two-story warehouse designed for efficient space utilization. A designated parking area provides direct access to the lobby, creating a smooth entry point for staff and visitors. The lobby opens into an office area, serving as a reception or administrative workspace. Toward the rear, the layout accommodates storage for tools and materials, along with essential amenities such as restrooms.

The second floor is dedicated entirely to additional storage, maximizing vertical space to support operational needs. This design is ideal for professionals involved in planning, managing, or optimizing space within commercial or industrial facilities.

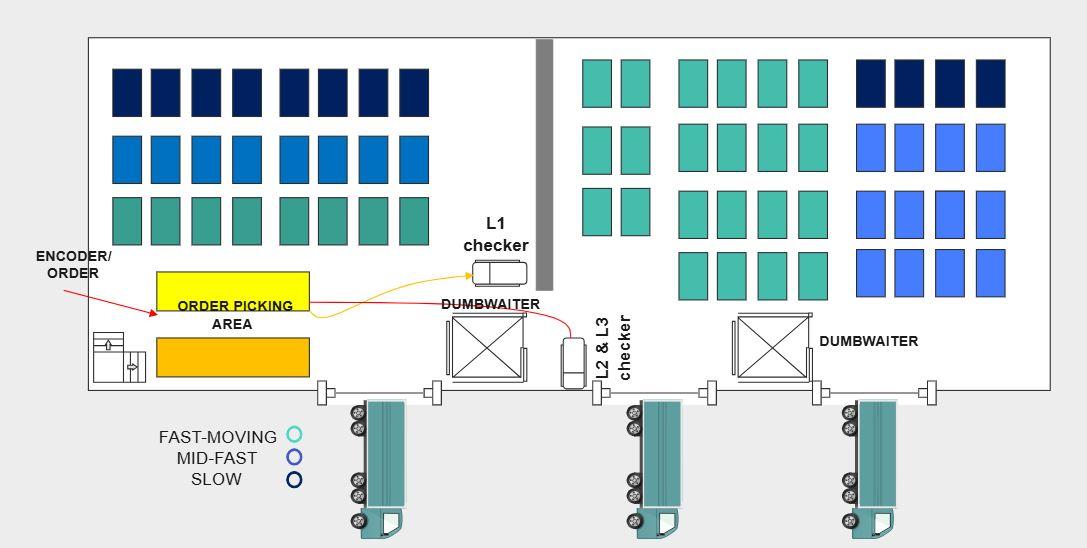

Order Fulfilment Warehouse

This layout diagram presents a streamlined order fulfillment system tailored for a multi-level warehouse setup. It includes a dedicated order encoding area where processing begins, followed by clearly defined picking zones. Accuracy is maintained through strategically positioned check stations on each level.

To enhance efficiency, dumbwaiters are incorporated to transport items between floors, minimizing manual handling and transit time. Additionally, multiple exits are provided for delivery trucks, ensuring an efficient flow of goods within the facility. This design is ideal for warehouses aiming to optimize order processing workflows and boost overall operational performance.

How to Create a Warehouse Layout in EdrawMax

Method 1: Steps to Make a Warehouse Layout

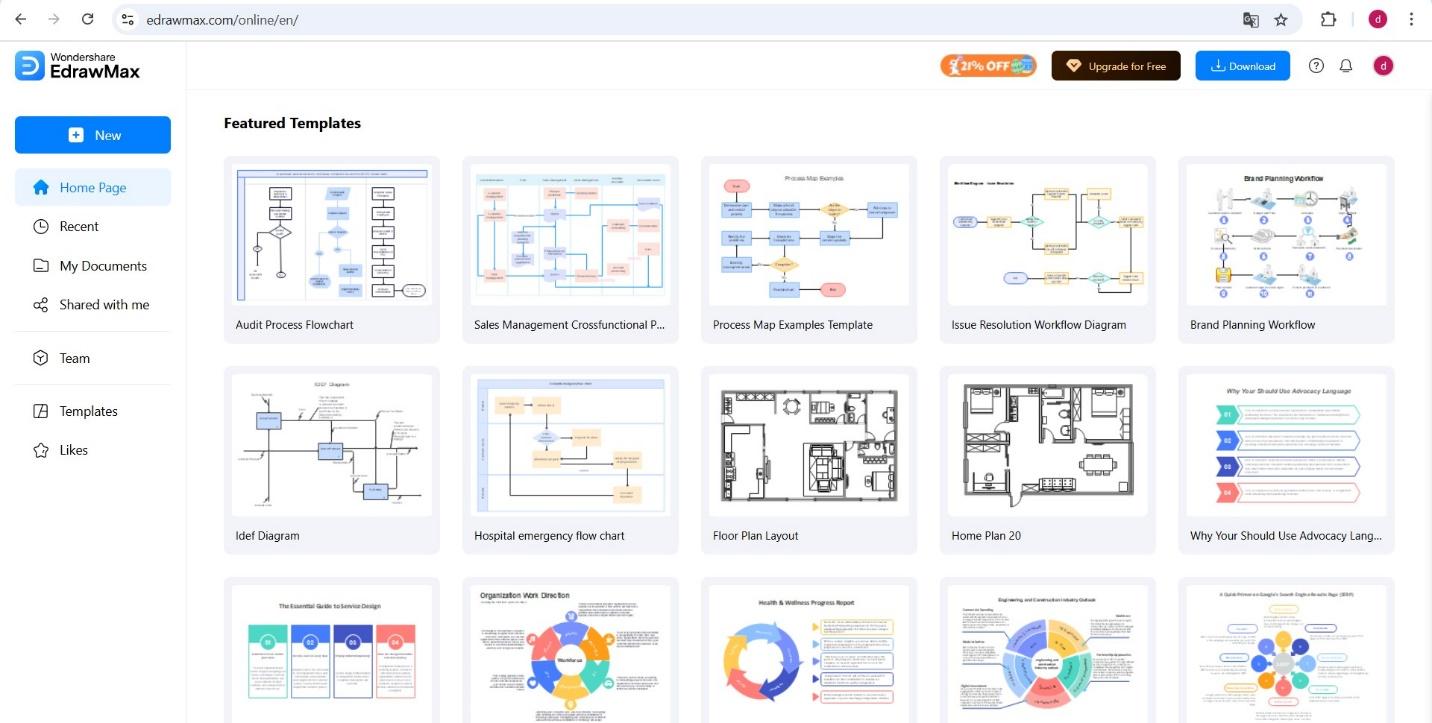

Step 1

Download EdrawMax or open EdrawMax web on your browser. Follow the steps provided on the website to sign in or create an account.

step 1 of making warehouse layout from scratch

Embark on your dream home journey. Explore the artistry of modern living in these 10 simple two-floor house plans, where simplicity meets elegance. The designs are from Wondershare EdrawMax's vibrant Templates Community.

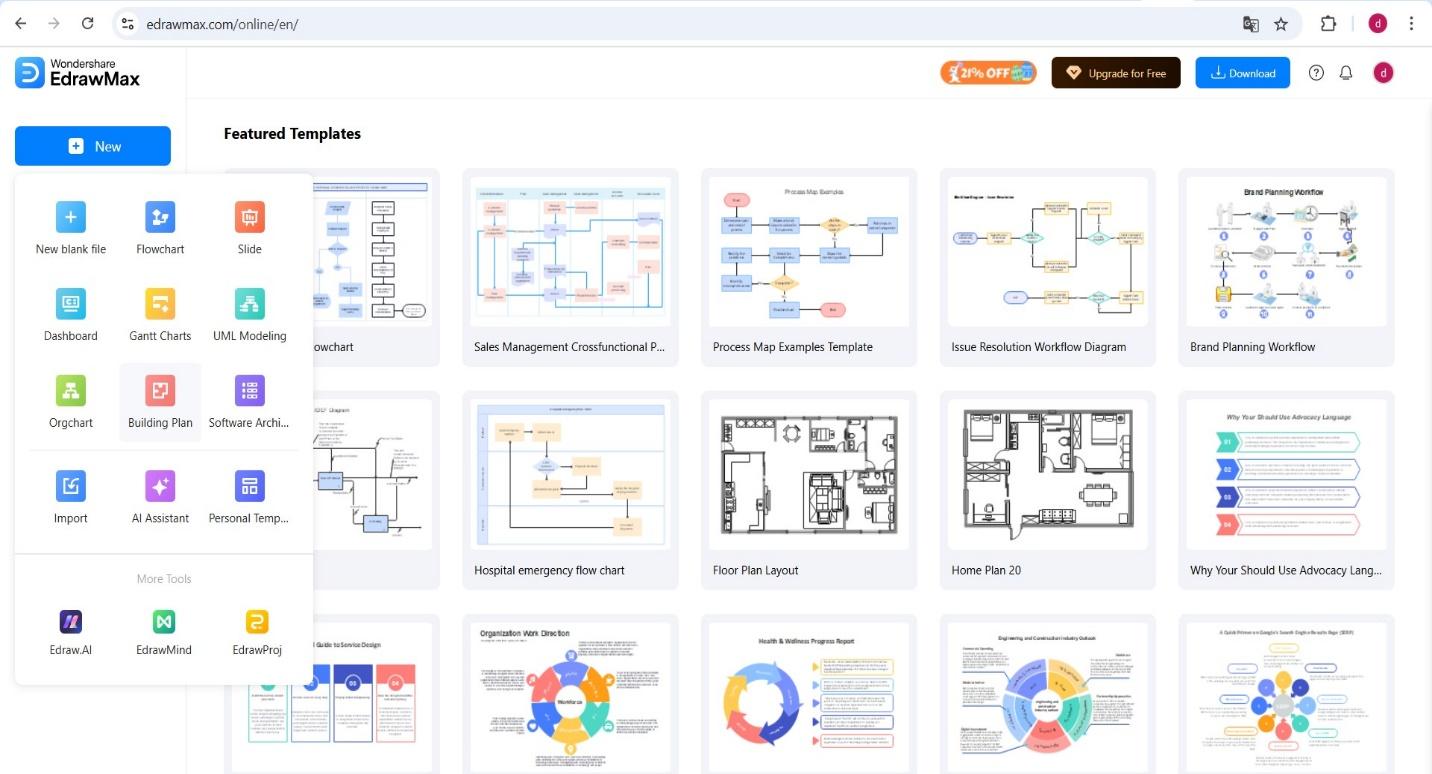

Step 2

From the dashboard, click on New and select Building Plan to start a new Project

step 2 of making warehouse layout from scratch

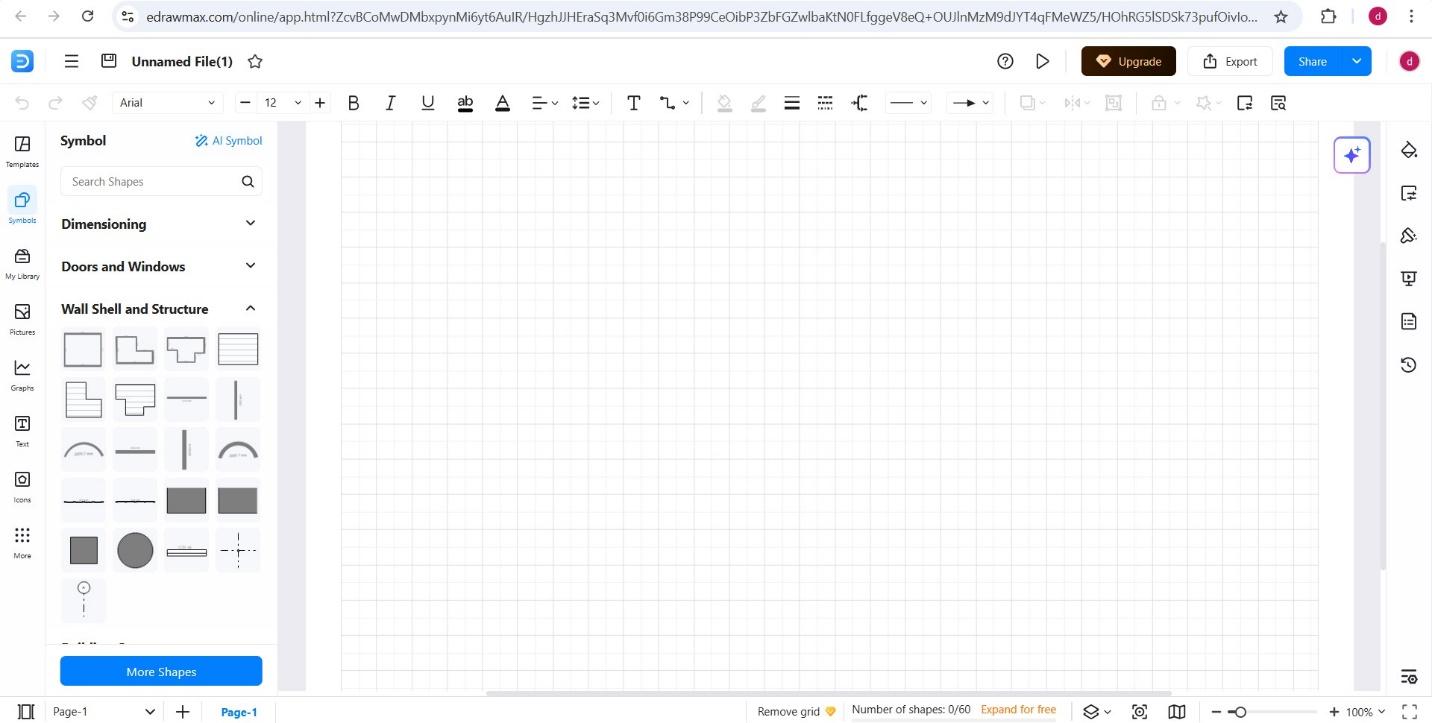

Step 3

Navigate the Symbols Menu and Open Wall Shell and Structure tab.

step 3  of making warehouse layout from scratch

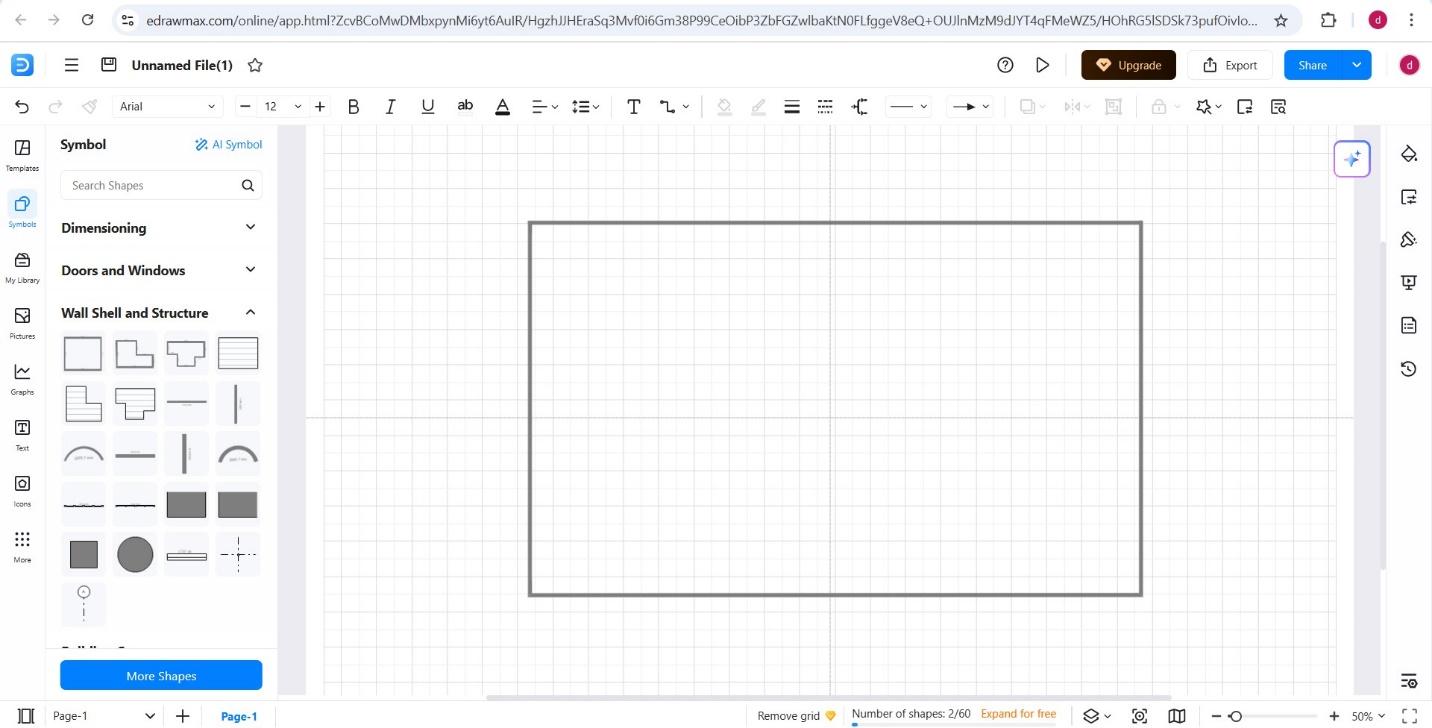

Step 4

Begin designing your warehouse layout by dragging and dropping wall elements and structural shapes onto the blank canvas. Double-click any wall to modify its dimensions as needed.

step 4 of making warehouse layout from scratch

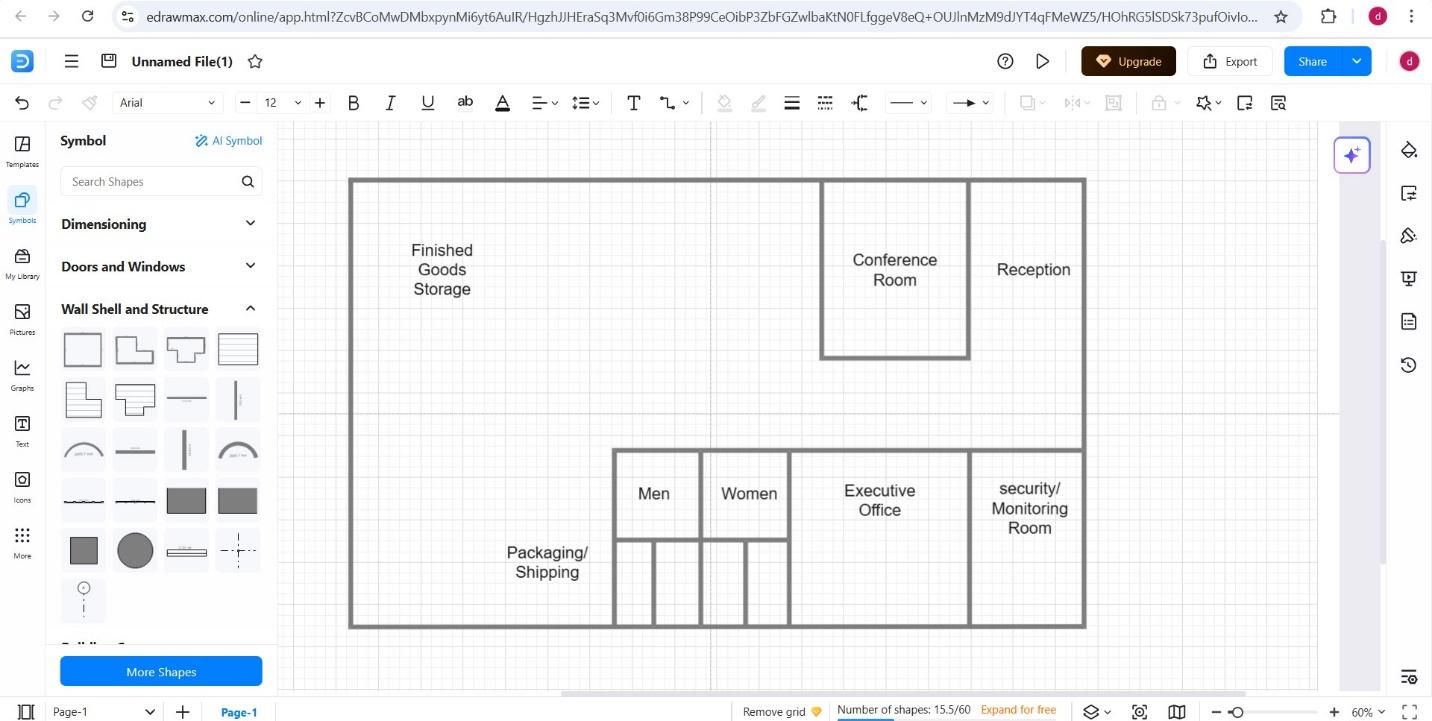

Step 5

Use the Text tab to insert and customize labels, annotations, or room names within your floor plan

step 1 of making warehouse layout from scratch

Step 6

Enhance your layout by using additional tabs under the Symbols menu, such as Doors and Windows, Kitchen and Dining Room, Bathroom, and More Shapes, to add specific functional details to your warehouse.

Step 7

Make final adjustments to align the plan with your intended design. Once satisfied, save your project online and assign it a unique name for easy access and organization.

Method 2: Use a Warehouse Template

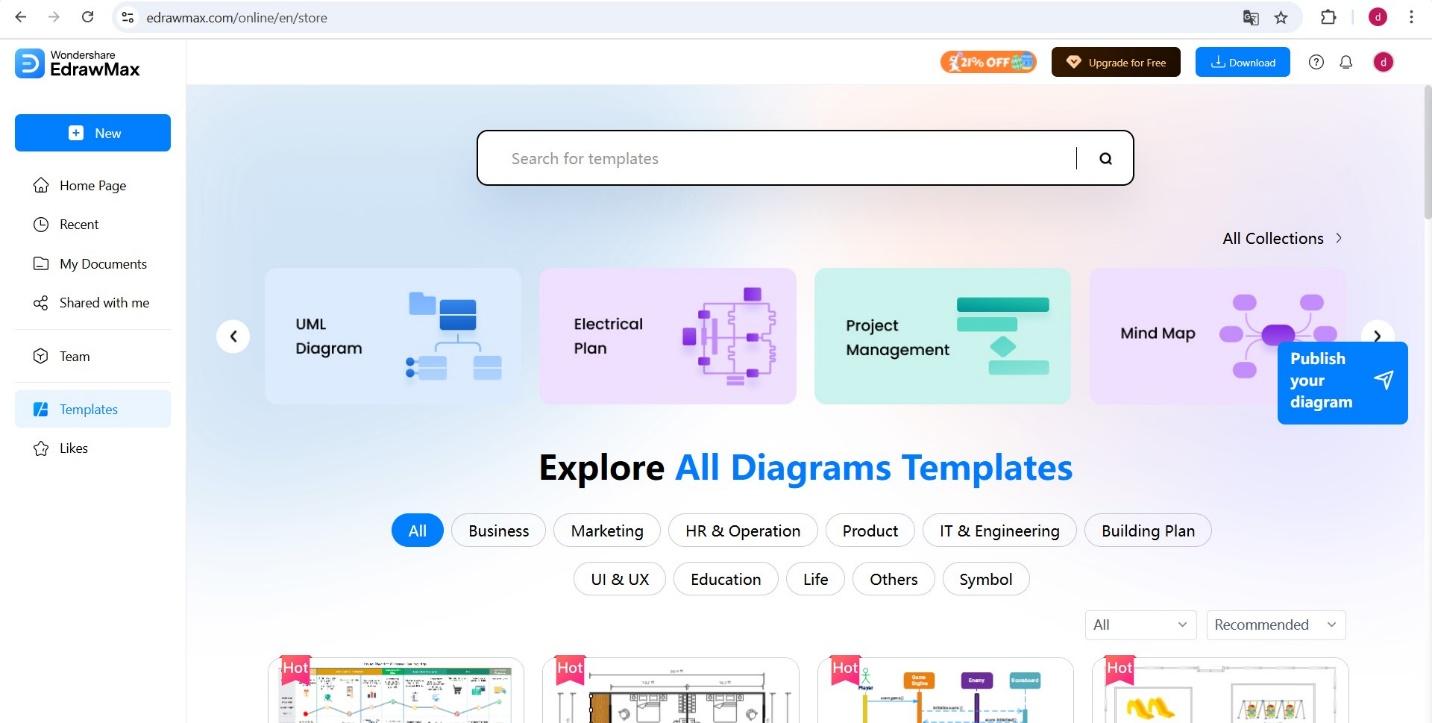

Step 1

Launch EdrawMax and navigate to the Templates section from the main dashboard.

step 1 of making warehouse layout with a template

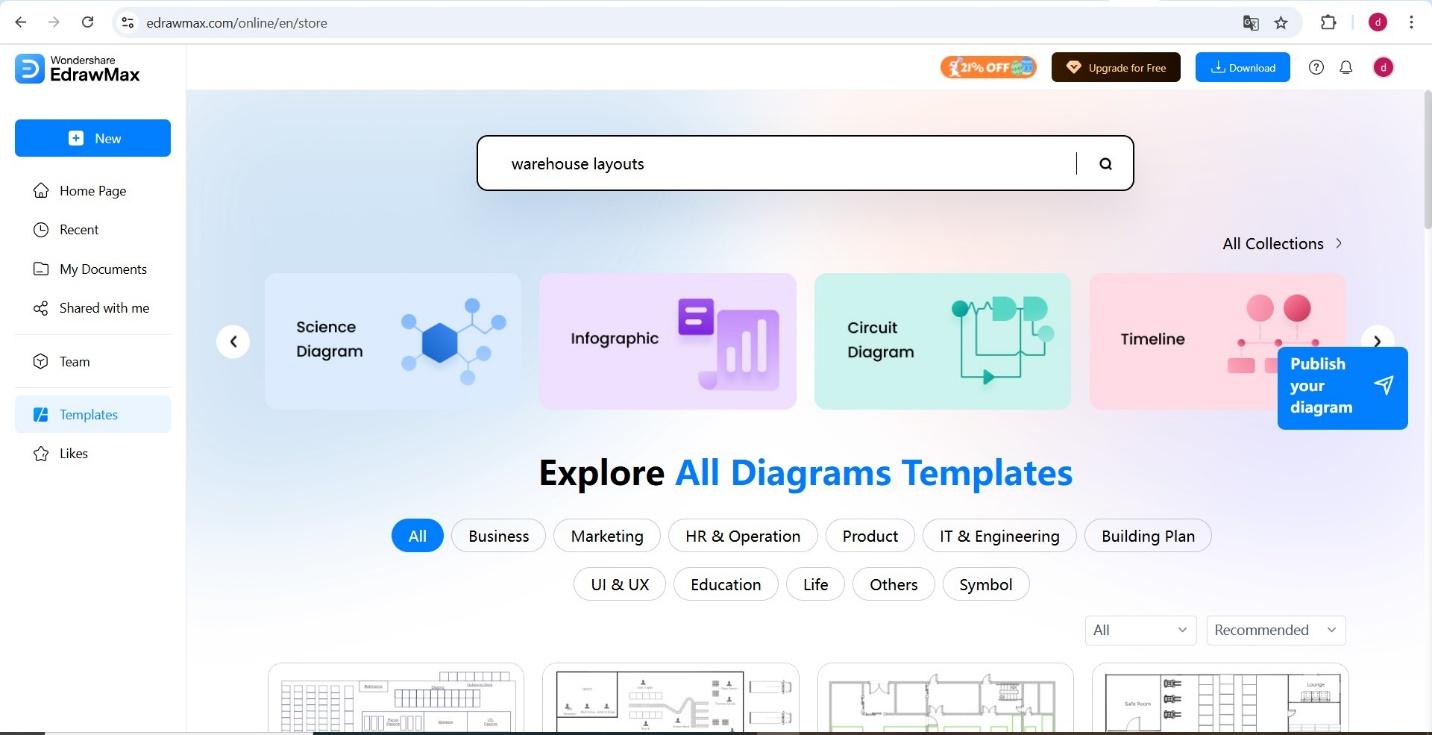

Step 2

Browse through the Floor Plans category or use the search bar to find suitable Warehouse Layout Templates.

step 2 of making warehouse layout with a template

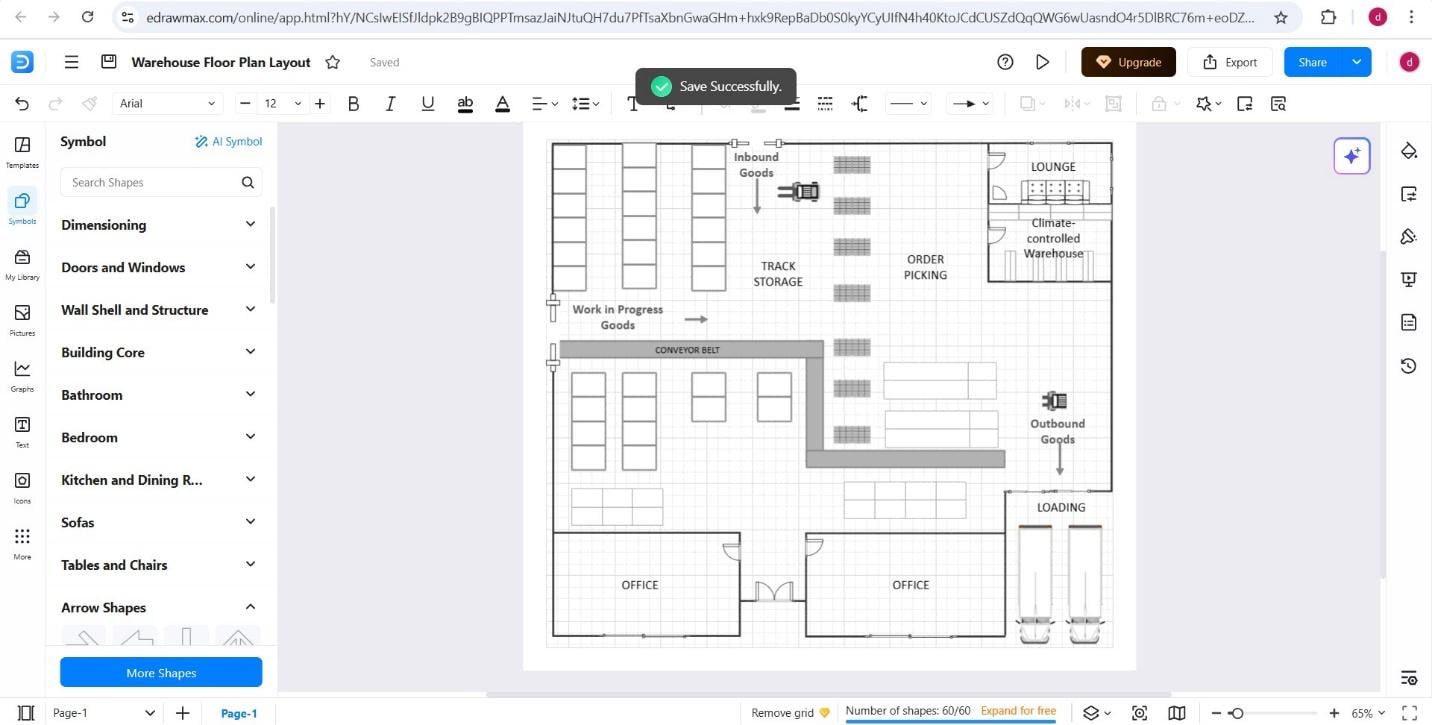

Step 3

Customize the selected template to align with your specific project requirements. You can resize rooms, reposition or add doors and windows, and incorporate custom shapes and symbols to reflect your desired layout and functionality.

step 3  of making warehouse layout with a template

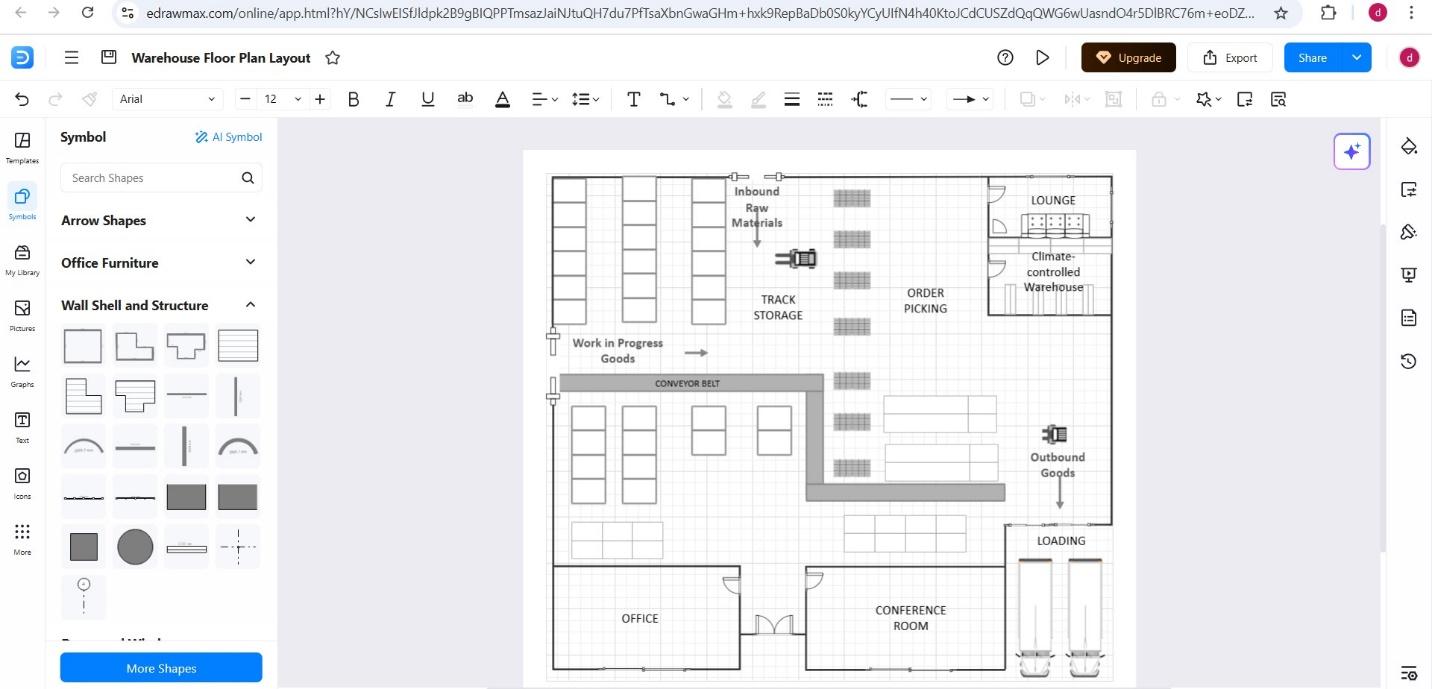

Step 4

Once your modifications are complete, save the project for personal reference or utilize EdrawMax’s sharing options to collaborate or present the layout to others.

step 4 of making warehouse layout with a template

Conclusion

Investing time in a well-planned warehouse layout pays off through increased productivity, safer workflows, and better inventory management. Modern warehouses demand flexibility, scalability, and smart space allocation—all achievable with the right design approach.

EdrawMax empowers you to create professional, functional layouts without specialized training. With its intuitive interface and comprehensive symbol library, you can easily plan new facilities or redesign existing spaces. Start designing your high-performance warehouse with EdrawMax today and take the first step toward operational excellence!
